R语言环境搭建

周边

发布日期: 2025-07-17

下载安装R

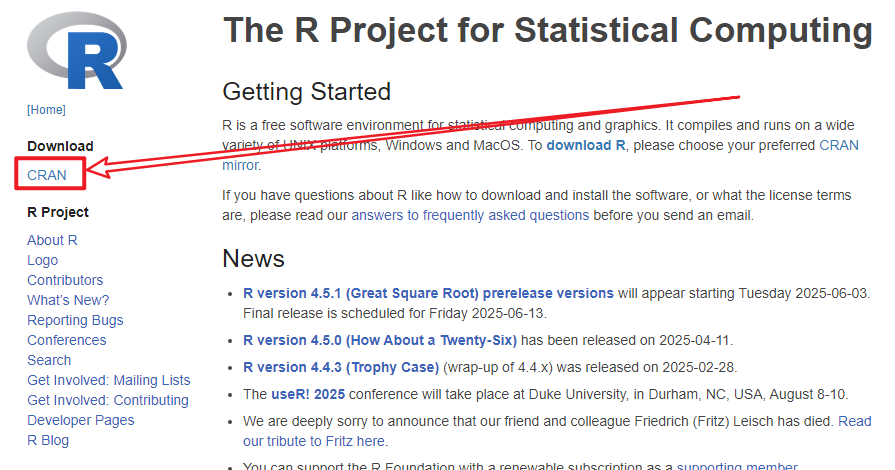

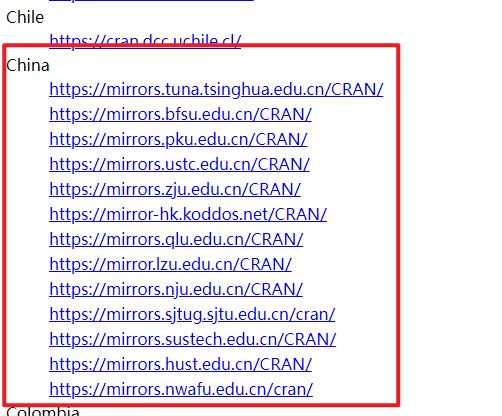

寻找国内镜像源

https://www.r-project.org/

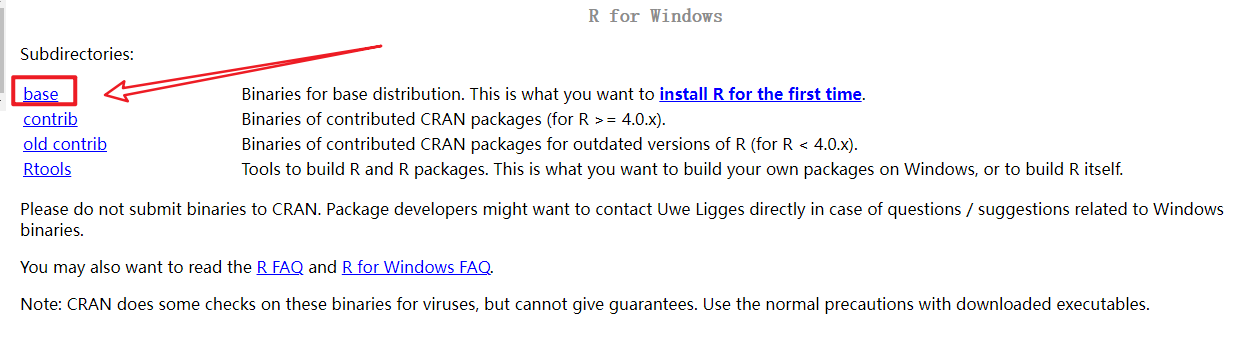

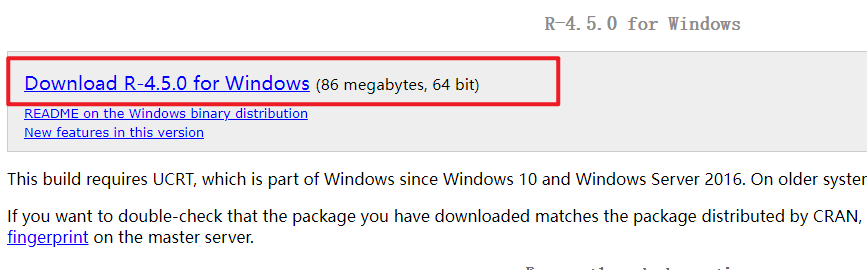

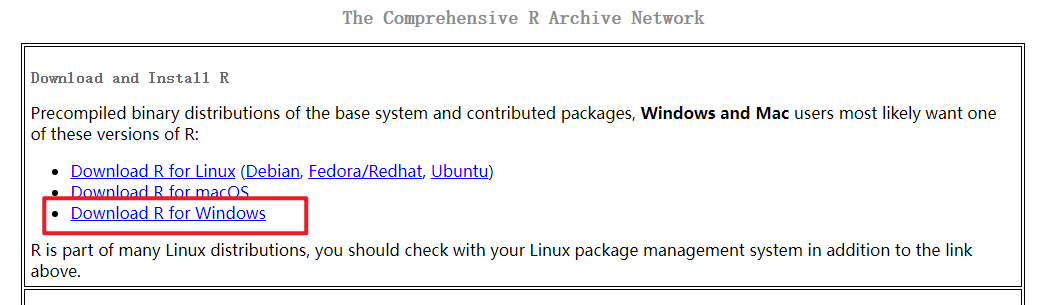

下载

安装

略

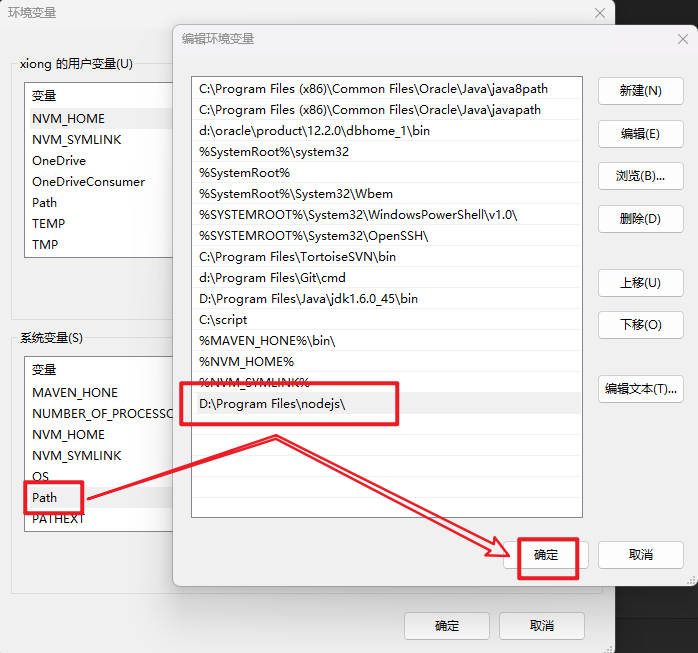

配置环境变量

C:\Program Files\R\R-4.5.0\bin

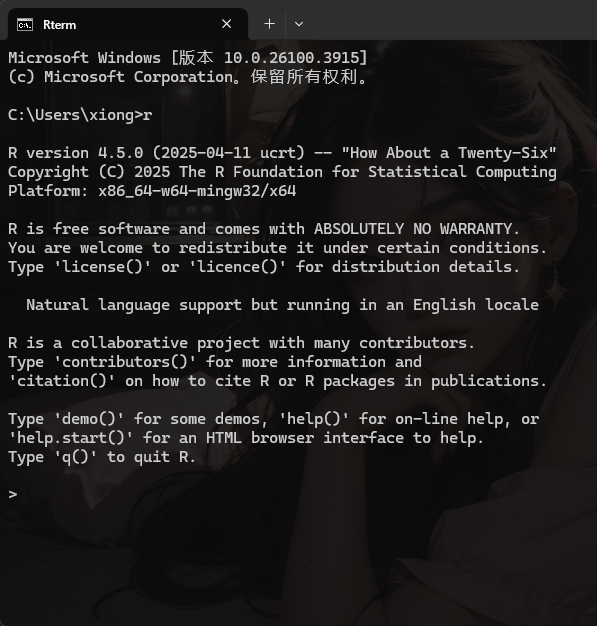

验证

cmd 输入 r

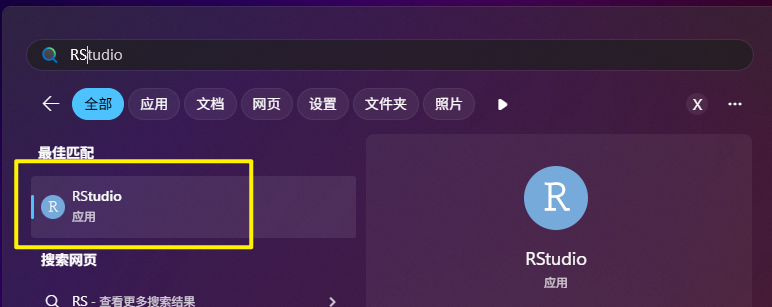

安装R-studio

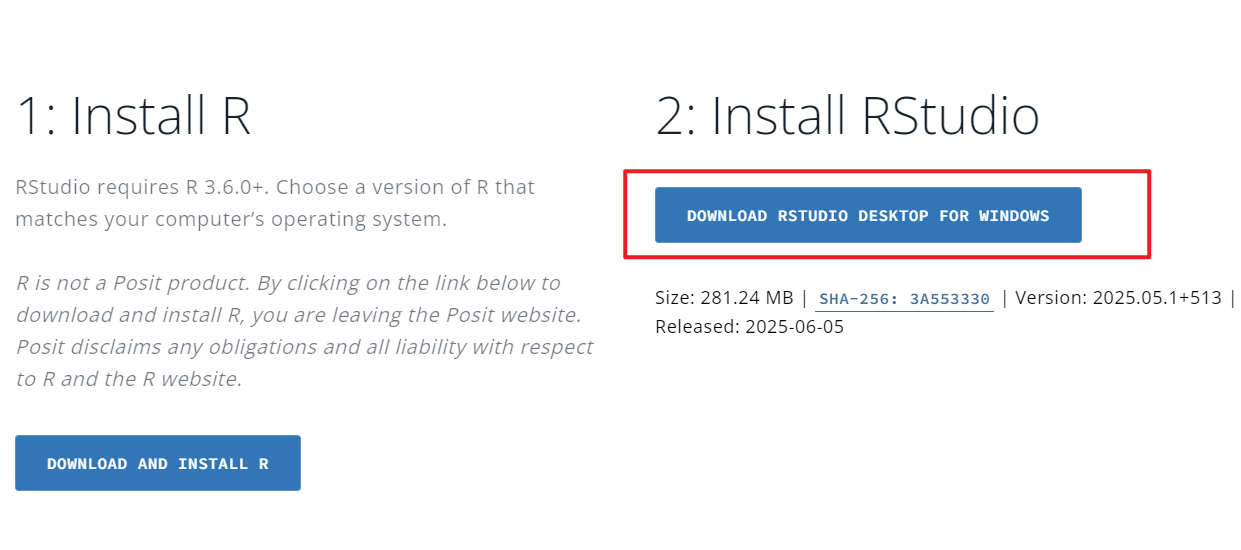

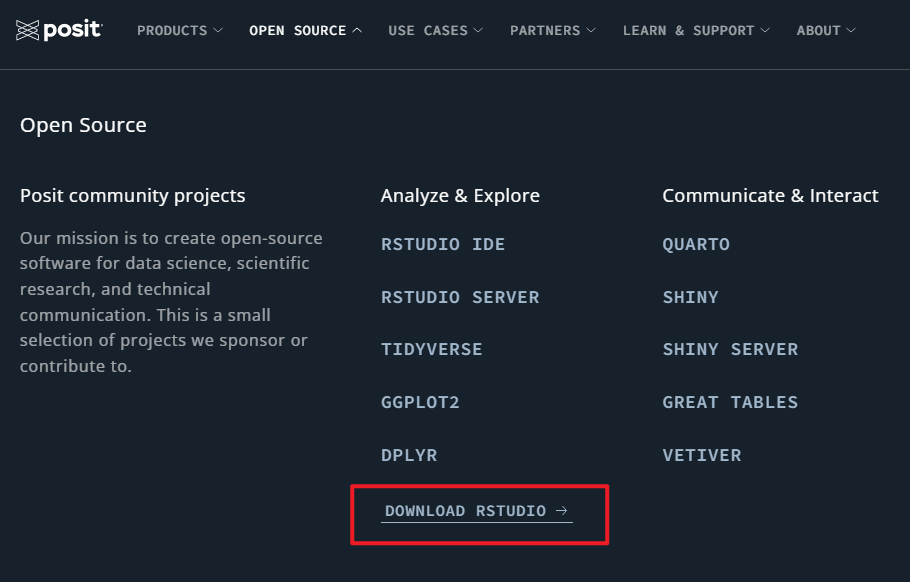

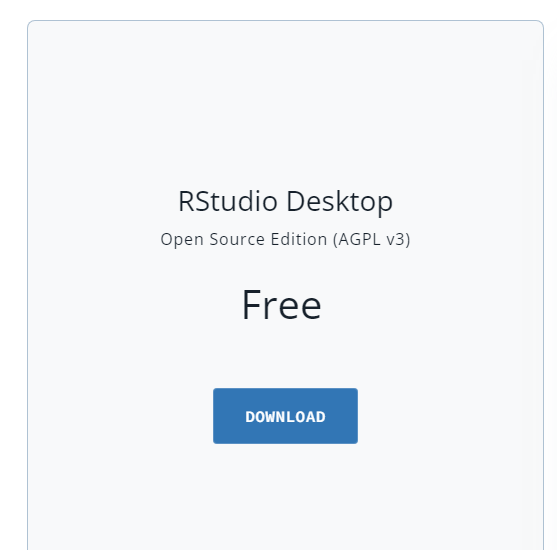

下载

https://posit.co/downloads/

安装

略

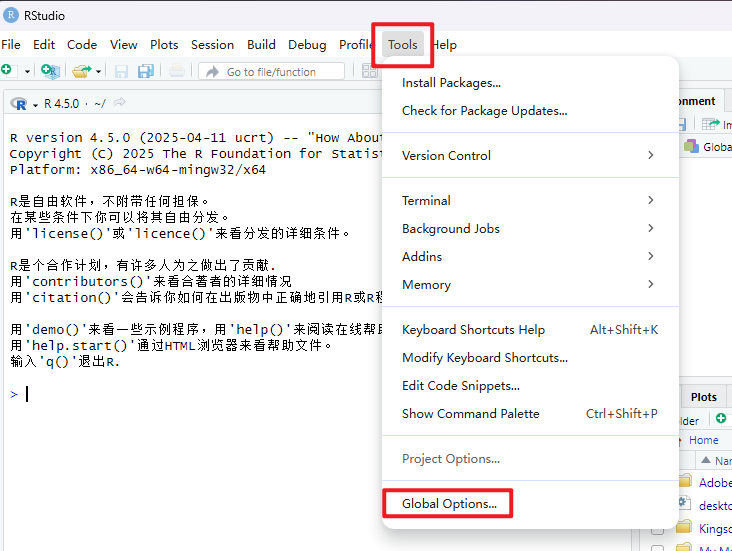

设置

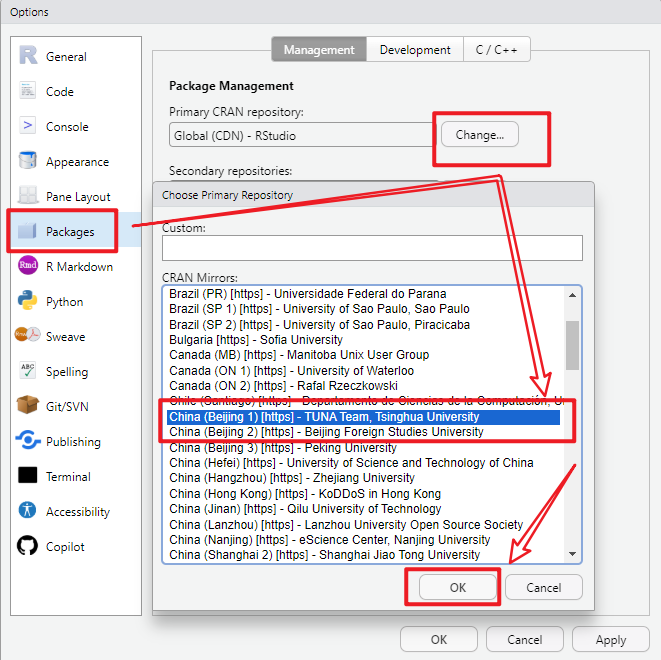

修改镜像源

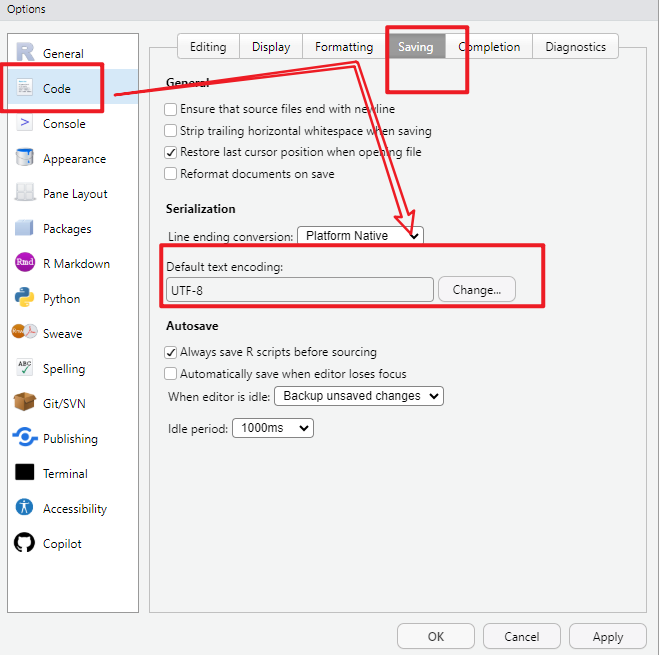

修改字符集

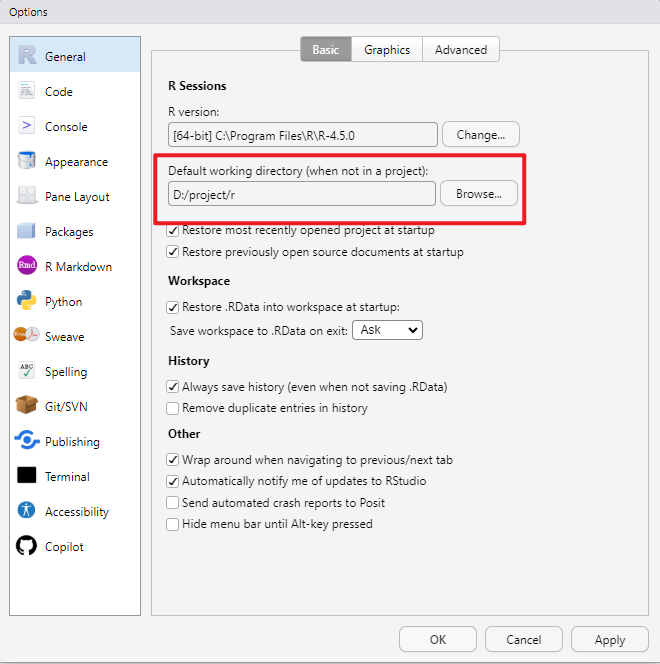

修改工作区

使用例子

画一个圈圈

代码

# 绘制圆形函数
draw_circle <- function(radius = 1, center = c(0, 0), color = "black", fill = FALSE,
                        lwd = 2, lty = 1, main = NULL, xlab = "X轴", ylab = "Y轴",
                        grid = TRUE) {
  # 如果没有提供标题，则创建一个默认标题
  if(is.null(main)) {
    main <- paste("圆形 (半径:", radius, ", 圆心:", center[1], ",", center[2], ")")
  }

  # 设置绘图区域
  plot(NA, NA,
       xlim = c(center[1] - radius - 0.5, center[1] + radius + 0.5),
       ylim = c(center[2] - radius - 0.5, center[2] + radius + 0.5),
       xlab = xlab, ylab = ylab, main = main,
       asp = 1,  # 保持坐标轴比例相等，确保圆不会变形
       type = "n")

  # 如果需要填充，则先绘制填充圆
  if(fill) {
    polygon(
      center[1] + radius * cos(seq(0, 2*pi, length.out = 100)),
      center[2] + radius * sin(seq(0, 2*pi, length.out = 100)),
      col = adjustcolor(color, alpha.f = 0.3),
      border = NA
    )
  }

  # 绘制圆的轮廓
  lines(
    center[1] + radius * cos(seq(0, 2*pi, length.out = 100)),
    center[2] + radius * sin(seq(0, 2*pi, length.out = 100)),
    col = color,
    lwd = lwd,
    lty = lty
  )

  # 添加网格线
  if(grid) {
    grid(col = "gray", lty = "dotted")
  }

  # 添加坐标轴
  abline(h = 0, v = 0, col = "gray", lty = "dotted")

  # 返回圆心和半径信息
  invisible(list(center = center, radius = radius))
}

# 使用示例
# 绘制默认圆形
draw_circle()

# 绘制自定义圆形
# draw_circle(
#   radius = 2,
#   center = c(1, 1),
#   color = "red",
#   fill = TRUE,
#   lwd = 3,
#   main = "自定义圆形"
# )
