说明
最近因为一直在搞webService，所以一直在和xml打交道。所以想写一篇关于xml解析的dom4j的工具使用博客
本篇使用dom4j 2.1.4
主要介绍如何用基于注解的方式，对bean和xml进行转换
<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<soapenv:myRoot xmlns:impl="http://impl.service.importPOConfirmStateUpdateSrv.zx.interfaces.sinointerfaces.sinoprof.com/"
xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/"
xmlns:ns1="http://www.tibco.com/namespaces/bc/2002/04/partyinfo.xsd">
<header>
<ns1:name>测试报文</ns1:name>
<from>保姆</from>
<to>厨子</to>
</header>
<body>
<name>信件</name>
<param xsi:type="Param1" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
<name>信件名称</name>
</param>
</body>
</soapenv:myRoot>
BeanToXml
首先指定命名空间
创建package-info.java（必须叫这个名字）
命名空间会自动添加到根节点上
@XmlSchema(
xmlns={
@XmlNs(prefix="soapenv", namespaceURI="http://schemas.xmlsoap.org/soap/envelope/"),
@XmlNs(prefix="impl", namespaceURI="http://impl.service.importPOConfirmStateUpdateSrv.zx.interfaces.sinointerfaces.sinoprof.com/"),
@XmlNs(prefix="ns1", namespaceURI="http://www.tibco.com/namespaces/bc/2002/04/partyinfo.xsd"),
}
)
package com.xiong.demo.test2;
import javax.xml.bind.annotation.XmlNs;
import javax.xml.bind.annotation.XmlSchema;

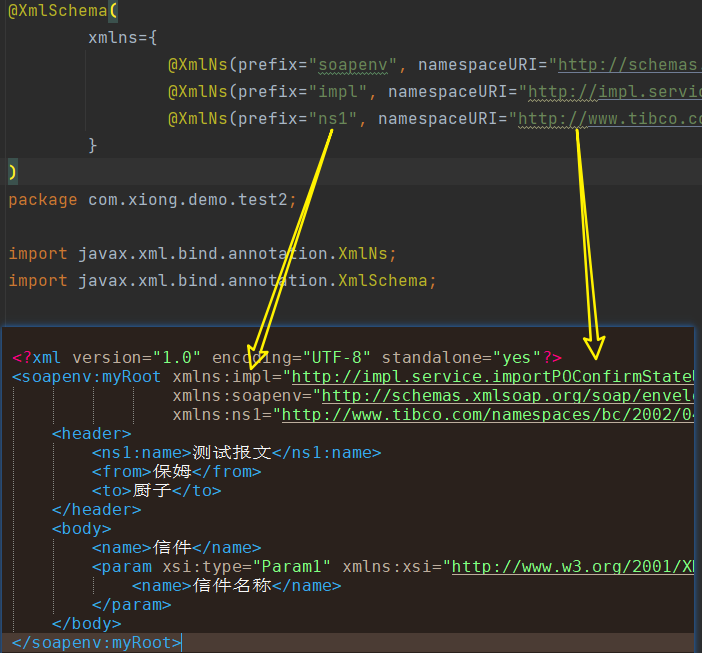

如同这样
创建 header
package com.xiong.demo.test2;
import lombok.Data;
import javax.xml.bind.annotation.XmlAccessType;
import javax.xml.bind.annotation.XmlAccessorType;
import javax.xml.bind.annotation.XmlElement;
import javax.xml.bind.annotation.XmlType;
/**
* @Auther: 张一雄
* @Date: 2023/5/25 17:39
* @Description: MyHeader
* @Version 1.0.0
*/
@XmlAccessorType(XmlAccessType.FIELD)
@XmlType(name = "MyHeader",
propOrder = {
"name",
"from",
"to"
})
@Data
public class MyHeader {
@XmlElement(name = "ns1:name", required = true)
private String name = "测试报文";
@XmlElement(name = "from", required = true)
private String from = "保姆";
@XmlElement(name = "to", required = true)
private String to = "厨子";
}

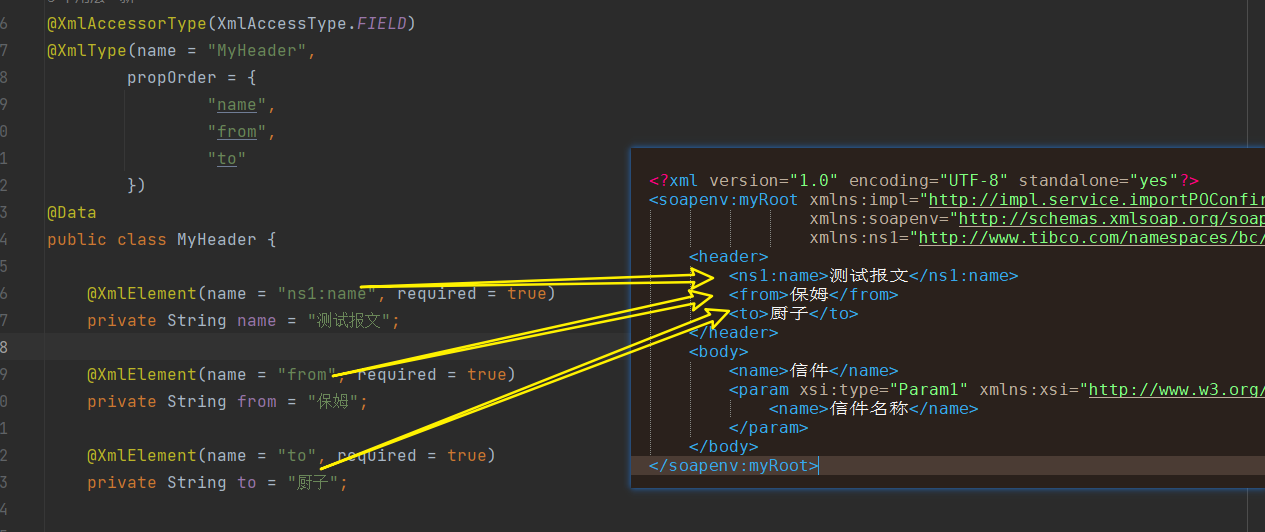

对用的报文
创建body
创建body之前
先创建两个 对象，作为body的参数，然后我们在后续测试时，可以动态的切换两个对象
package com.xiong.demo.test2;
import lombok.Data;
import javax.xml.bind.annotation.XmlAccessType;
import javax.xml.bind.annotation.XmlAccessorType;
import javax.xml.bind.annotation.XmlElement;
import javax.xml.bind.annotation.XmlType;
/**
* @Auther: 张一雄
* @Date: 2023/5/25 17:41
* @Description: Param1
* @Version 1.0.0
*/
@XmlAccessorType(XmlAccessType.FIELD)
@XmlType(name = "Param1",
propOrder = {
"name"
})
@Data
public class Param1 {
@XmlElement(name = "name", required = true)
private String name = "信件名称";
}
package com.xiong.demo.test2;
import lombok.Data;
import javax.xml.bind.annotation.XmlAccessType;
import javax.xml.bind.annotation.XmlAccessorType;
import javax.xml.bind.annotation.XmlElement;
import javax.xml.bind.annotation.XmlType;
/**
* @Auther: 张一雄
* @Date: 2023/5/25 17:41
* @Description: Param1
* @Version 1.0.0
*/
@XmlAccessorType(XmlAccessType.FIELD)
@XmlType(name = "Param2",
propOrder = {
"name",
"context"
})
@Data
public class Param2 {
@XmlElement(name = "name", required = true)
private String name = "信件名称";
@XmlElement(name = "context", required = true)
private String context = "信件内容";
}
创建body
package com.xiong.demo.test2;
import lombok.Data;
import javax.xml.bind.annotation.*;
/**
* @Auther: 张一雄
* @Date: 2023/5/25 17:39
* @Description: MyBody
* @Version 1.0.0
*/
@XmlAccessorType(XmlAccessType.FIELD)
@XmlType(name = "Body",
propOrder = {
"name",
"param"
})
// 这里要把可能被切换到的对象的class写进去，否则会抛出异常
@XmlSeeAlso({Param2.class, Param1.class})
@Data
public class MyBody<T> {
@XmlElement(name = "name", required = true)
private String name = "信件";
private T param; // 这里动态的切换对象
}

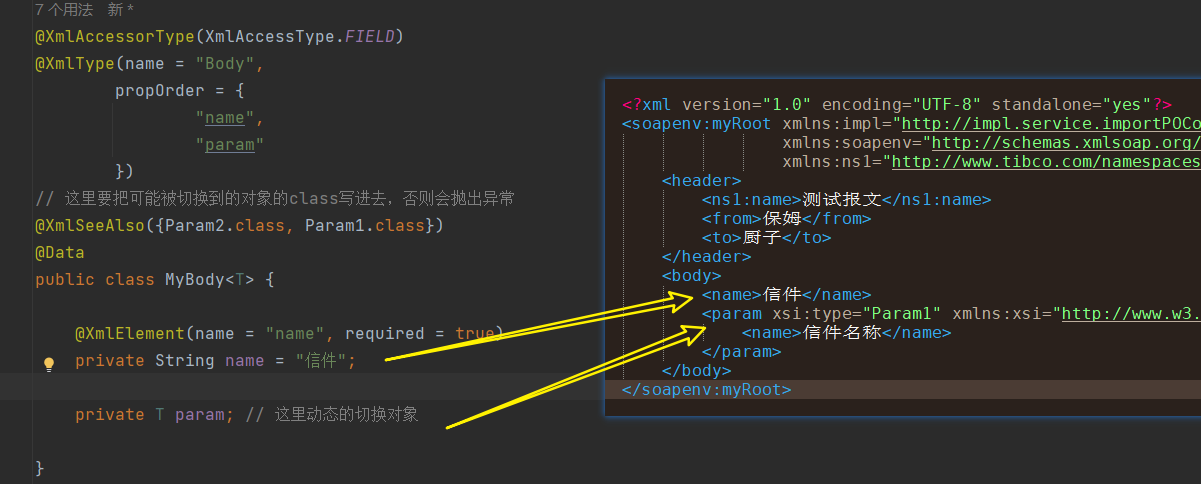

body 对应的报文
写根目录
package com.xiong.demo.test2;
import lombok.Data;
import javax.xml.bind.annotation.*;
/**
* @Auther: 张一雄
* @Date: 2023/5/25 17:37
* @Description: MyRoot
* @Version 1.0.0
*/
@XmlAccessorType(XmlAccessType.FIELD)
@XmlType(propOrder = {
"header",
"body"
})
// 标签名称
@XmlRootElement(name = "soapenv:myRoot" )
@Data
public class MyRoot {
// 标签名称
@XmlElement(name = "header", required = true)
public MyHeader header = new MyHeader();
// 标签名称
@XmlElement(name = "body", required = true)
public MyBody body = new MyBody();
}

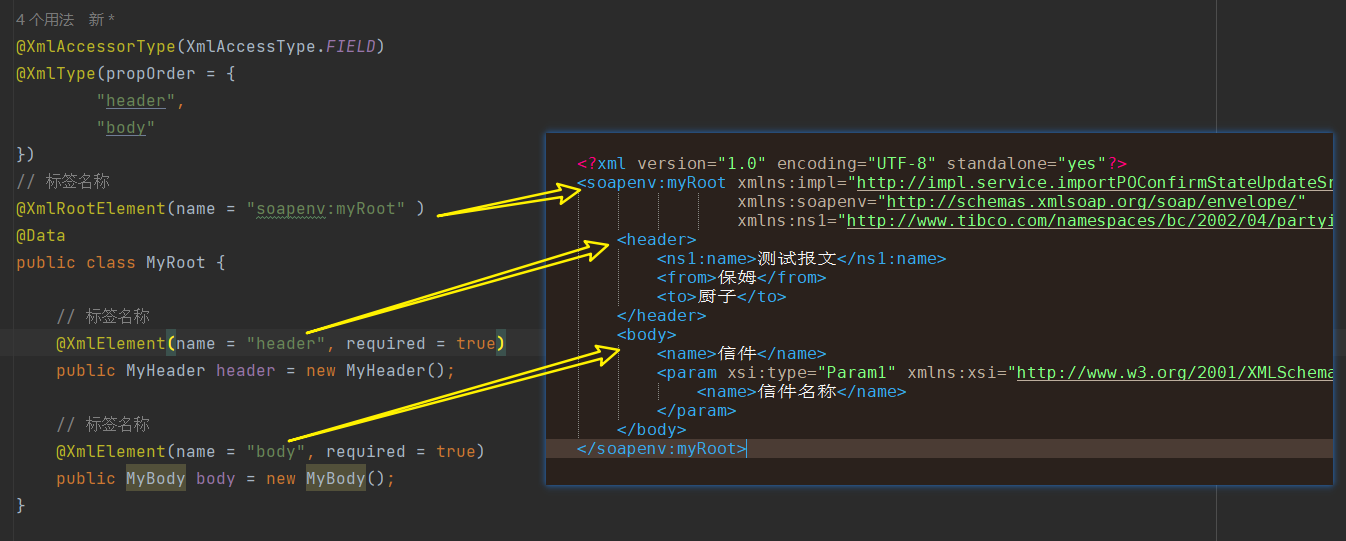

在报文中的体现如下：
转成xml
@Test
public void toXml(){
try {
// 拼装报文切换body中的参数
MyRoot myRoot = new MyRoot();
MyBody<Param1> myBody = new MyBody<>();
Param1 param1 = new Param1();
myBody.setParam(param1);
myRoot.setBody(myBody);
// 打印 xml
String encoding = "UTF-8";
StringWriter writer = new StringWriter();
JAXBContext context = JAXBContext.newInstance(MyRoot.class);
Marshaller marshal = context.createMarshaller();
marshal.setProperty(Marshaller.JAXB_FORMATTED_OUTPUT, true);
marshal.setProperty(Marshaller.JAXB_FRAGMENT, false);
marshal.setProperty(Marshaller.JAXB_ENCODING, encoding);
marshal.marshal(myRoot, writer);
String xmlContext = new String(writer.getBuffer());
System.out.println(xmlContext);
}catch (Exception e){
e.printStackTrace();
}
}
xmlToBean
关于xml转bean，其中有个坑，就是如果有命名空间且比较负载的时时候，用此方法无法正确解析
建议使用dom4j原生方法进行解析
static String xml = "<soapenv:myRoot >\n" +
" <header>\n" +
" <ns1:name>测试报文</ns1:name>\n" +
" <from>保姆</from>\n" +
" <to>厨子</to>\n" +
" </header>\n" +
" <body>\n" +
" <name>信件</name>\n" +
" <param xsi:type=\"Param1\" >\n" +
" <name>信件名称</name>\n" +
" </param>\n" +
" </body>\n" +
"</soapenv:myRoot>";
@Test
public void toBean() throws JAXBException, FileNotFoundException, ParserConfigurationException, SAXException {
Object unmarshall = unmarshall(MyRoot.class, xml);
System.out.println(unmarshall);
}
public static Object unmarshall(Class<?> cla , String content) throws JAXBException, ParserConfigurationException, SAXException {
JAXBContext jaxbContext = JAXBContext.newInstance(cla);
Unmarshaller unmarshaller = jaxbContext.createUnmarshaller();
StringReader reader = new StringReader(content);
SAXParserFactory sax = SAXParserFactory.newInstance();
sax.setNamespaceAware(false);
XMLReader xmlReader = sax.newSAXParser().getXMLReader();
Source source = new SAXSource(xmlReader, new InputSource(reader));
Object o = unmarshaller.unmarshal(source);
return o ;
}
